Pursuing reliable safety and durabilityfor the automotive society through automotive parts.
Many seal products are used in automobiles.
Our seal products
contribute to improved equipment performanceunder harsh operating conditions. We also support
electrification innext-generation vehicles.Please feel free to contact with any questions you may
have.
Solutions

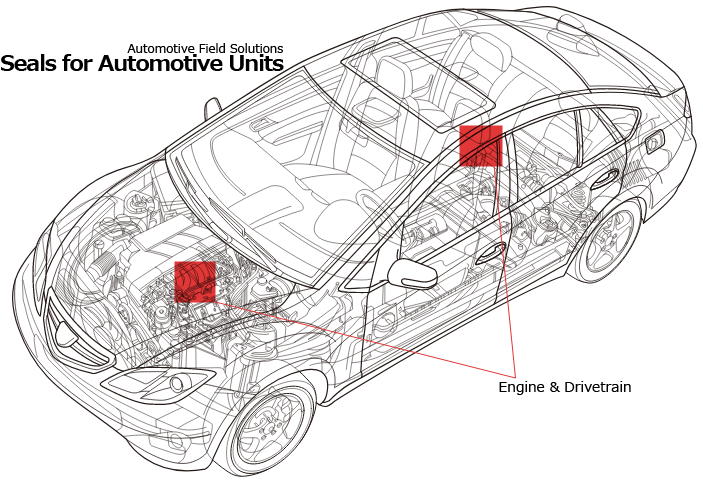

SolutionsAutomotive Field
- High Pressure Regulator
- High-pressure Tank
- Compressors
- Intake/Exhaust Valves
Application example: Dynamic (reciprocal
motion)
Temperature: Max. 200°C
Pressure difference: Max. 0.2
MPa
＜Our Standard Specifications＞
Dynamic
(reciprocating, oscillating), static
-200 to +250°CUp to 13.7 MPa
- Wide operating temperature range
- Low torque (during startup and operation)
- Lubricant-free
- Oil and chemical resistance

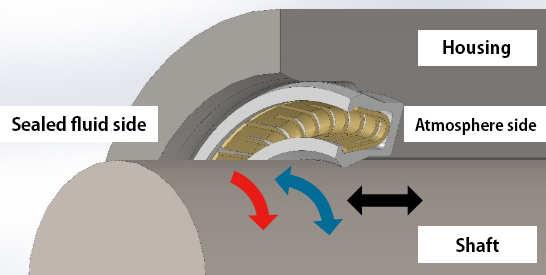

SolutionResin Composite Seal
(Shaft Seal)
- Compressors
- Pumps
- Superchargers
- Crankshafts
Application example: Circumferential speed: Max. 10.5 m/s Differential pressure: Max. 0.15 MPa
＜Our Standard Specifications＞
Dynamic (rotating,
oscillating)
-60 to +200°C
CUp to 1 MpaUp to 55 m/s (peripheral
speed)
- High speed
- Low torque (during startup and operation)
- Oil and chemical resistance
- Dust resistance
SolutionsMetal O-rings for Cylinder Heads (Racing Vehicles)
- Cylinder Heads
- Fuel Supply Pipes
- Sensor Heads
- Intake/Exhaust Valves
Application example: Static
Pressure: Max. 11
MPaTemperature: Max 400°C
＜Our Standard Specifications＞
Static
-270 to
+700°a
CVacuum up to 300 MP
- Pressure resistance
- High temperature resistant
- Gas sealing

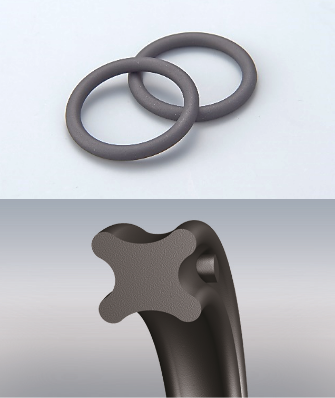

SolutionsSmall Diameter Rubber Seal (Production Automation)
- Drive system
- Exhaust system
We promote complete automation from molding, processing, finishing, inspection, to packaging.
Dynamic (oscillating)
55 to +135°C (depending on rubber
material)Target Outer Diameter ø5 to ø10
- Ozone resistance
- High sealability(high modulus, wear resistance)etc., various materials
Case Study
Case StudyLow Friction
By using PTFE, a low-friction material, in the sealing component,we provide low-friction seal products for rotational, oscillating, and reciprocating motion. This product has potential to optimize applications in electrified equipment that requires high rotation and low sliding.

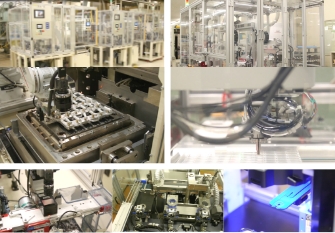

Case StudyAutomated Lines
From molding and processing to inspection and packaging, Mitsubishi Cable Industries promotes Complete Automation.
